The code LISE: new version 4.9-13 (23.02.01)

THE CODE LISE:
new versions 4.10, 4.11, 4.12, 4.13

Dubna
23.02.2001

Scattering calculator
Mass-separator mode
BI code
Prefragment search

Contents:

2. Scattering calculator version 4.13

3. Mass-separator mode - version 4.12

3.1. Cutout of the second dipole
3.2. New dE-X plot in the dispersive focal plane
3.3. New opportunity to select the velocity of reaction products
3.4. New image of the dialogue Beam
3.5. It is still necessary to work on: 4. The automated search for two-dimensional peaks in spectra and the determination of their characteristics (BI code) - version 4.11

5. Prefragment search - version 4.10

5.1. Attempt to extrapolate cross-sections of exotic nuclei
5.2. Calculation of isotope characteristics with semi empirical formula. References

1. Preprint of LISE paper

It is our pleasure to inform, that after long years of work the preprint of the paper on the LISE code has been submitted to Nuclear Instruments and Methods B: The program LISE: a simulation of fragment separators . The preprint of the LISE paper (Preprint NSCL MSU, MSUCL-1187, January 2001) is available as a pdf file (https://lise.nscl.msu.edu/doc/lise.pdf).

ABSTRACT: This paper is a description of the program LISE, which simulates the operation of fragment separators, used in the production of radioactive beams via fragmentation. The various aspects of the physical phenomena involved in the production of such radioactive beams are discussed. They include fragmentation cross sections, energy losses in materials, ionic charge state distributions, as well as ion optics calculations and acceptance effects. Among the goals of this program is a highly user-friendly environment, designed not only to forecast intensities and purities for planning future experiments, but also as a tuning tool during experiments where its results can be quickly compared to on-line data. In addition, several general purpose tools such as a physical parameters calculator, a database of nuclei properties, and relativistic two body kinematics calculations make it also attractive in experiments where radioactive beams are not involved. After a general description of fragment separators, the principles underlying the calculations are presented, followed by a practical description of the program and its many features. Finally, a few examples of calculations are compared to on-line data, both qualitatively and quantitatively.

2. Scattering calculator version 4.13

Continuing the tradition of developing the program of physical calculators, in the new version the calculator of a scattering process was created. The access to this calculator is carried out through the menu: Calculation -> Scattering Calculator. The given calculator is a powerful and convenient tool for estimations of Coulomb scattering cross-sections, energies of scattered particles, both in the laboratory frame, and in the center-of-mass system. The calculator also allows to estimate the maximal scattered angle of particles in the laboratory frame, and also to estimate the rate of scattered particles in the detectors. The scattering angle can be input by one of four possible ways, picking thus the frame and scattered particle. The user can at once see the results of calculations for the given angle in the calculator (Fig.1), and also to construct the plots (Fig.2) Dependences of energies and angles in the laboratory frame on the scattering angle in the center-of-mass system are displayed: (q_LAB= f(q_CM) and Energy_LAB= f(q_CM), and also plots q 4_LAB= f(q 3_LAB) and Energy_LAB= f(q_LAB). Also the user can construct the plots of cross-sections of Coulomb scattering, both in the center-of-mass system, and in the laboratory frame (Fig.3).

In a series of cases for one scattering angle in the laboratory frame there can correspond two scattering angles in the center-of-mass system (as for example, for ⁶He on Fig.2). In such cases the user should set a direction of searching of the relevant angle in the center-of-mass system, if the initial angle is input in laboratory system.

In the basis of the calculator lie the relativistic evaluations. The user can be convinced of it in case of the scattering of two identical particles at small energies (about some MeV per a nucleon) and at higher energies.

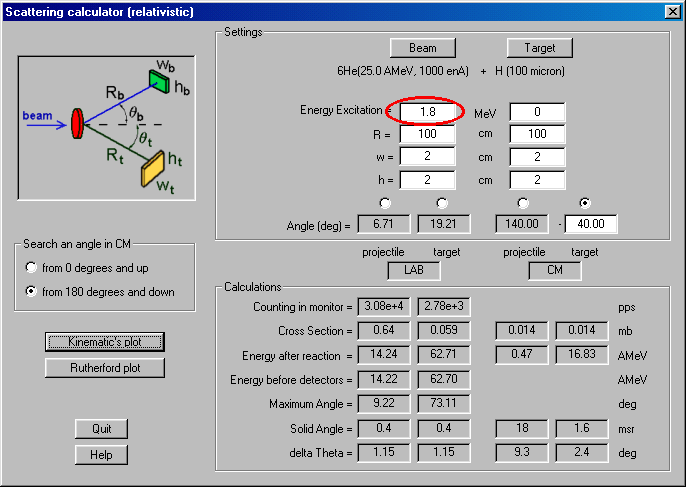

Fig.1. Calculations made by the Scattering calculator for ⁶He (25AMeV) on hydrogen at an angle of 140 degrees in the center-of-mass system for the ground state ⁶He (upper figure) and in case of excitation of the 1.8 MeV state (bottom figure).

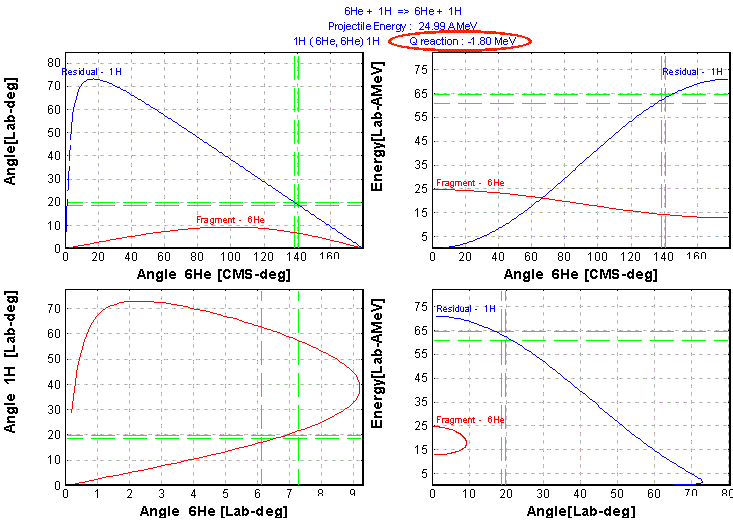

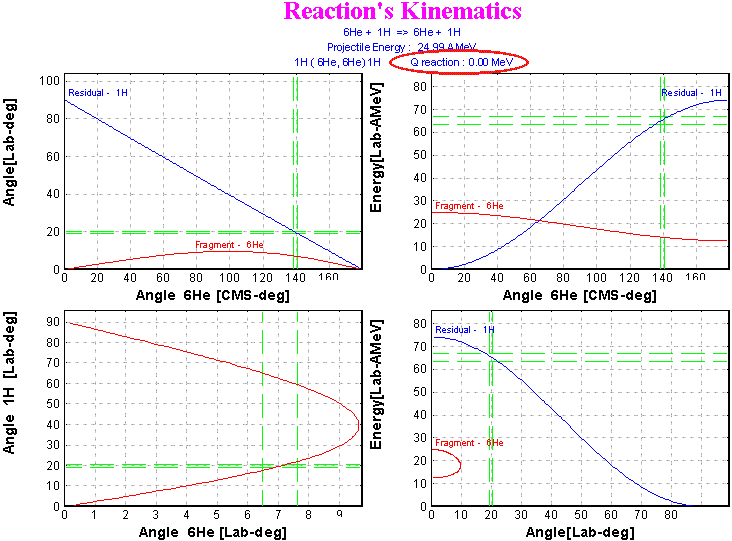

Fig.2. Angular and energy dependences for the scattering of ⁶He (25AMeV) on hydrogen for the ground state ⁶He (upper figure) and in the case of excitation of the 1.8 MeV state (bottom figure).

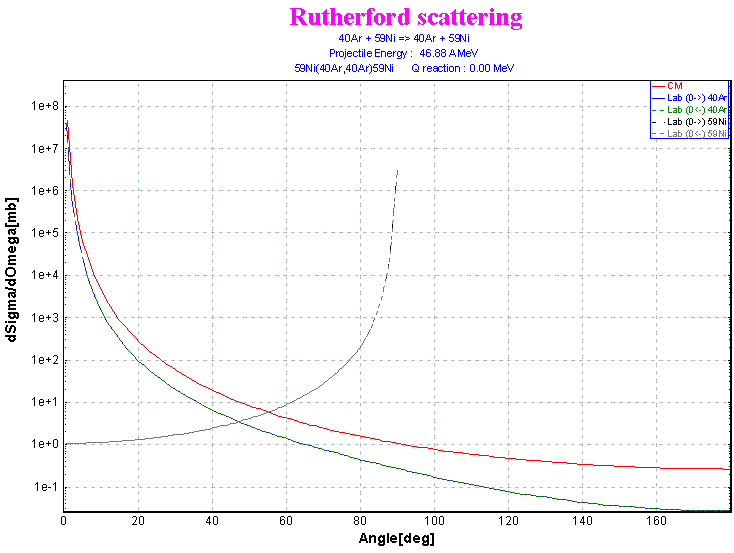

Fig.3. Differential cross-sections of Coulomb scattering of ⁴⁰Ar (46.7AMeV) +Ni in various frames.

In the calculations it is supposed, that the beam particle undergoes scattering in the middle of a target in view of losses of energy in the first half of the target. Further on, before registration in the detector both particles also lose kinetic energy in the target of width t/2/cos(q_LAB),, where t is the thickness of the target. The target is considered homogeneous so sa to avoid complicated calculations with a composite target.

One convenience is also the opportunity of the assignment of excitation in one of the scattered particles. So on Fig.1 and Fig.2 the examples of scattering for the reaction ⁶He(25AMeV) + H without excitation ⁶He and for excitation ⁶He to 1.8 MeV are given (it is certainly supposed, that the nucleus does not collapse, though we know, that ⁶He is unstable at excitation of a level 2⁺).

Also the given calculator can be used for estimating the intensity of the primary beam falling on the detector for registration of scattered particles, that very often is applied in physical experiments for monitoring the beam.

In the new version of the program in case of calculations of kinematics of a two-body reaction (menu Utilities -> Reaction's kinematics /two body/) the user will receive two additional plots q 4_LAB= f(q 3_LAB) and Energy_LAB= f(q_LAB).

3. Mass-separator mode - version 4.12

3.1 Cutout of the second dipole

Fig.4. The button of insert / lockout of the second part of a spectrometer.

Initially the program LISE was made for model operation of spectrometers consisting of two dipoles. Further the Wien filter of velocities, and later one dipole behind the filter permitting to yield a classification by A/Q was supplemented as an option. However, during operation with the program was clarified, that more prime configuration of operation in a mode of a mass separator consisting of one of a dipole is not realized, that makes possible to simulate experiments on such installations as SPEG, S800, MSP-144 and so on. Certainly, it was possible to accept an optical matrix of the second part of a spectrometer for single and to increase acceptances of the second part of a spectrometer, and also to increase slots in a final focal plane, so that there were no losses in transmission in the second part of a spectrometer. However, all this causes inconveniences, owing to what by more prime expedient it was embodied in the program. Now the user can switch off (Fig.4) the second dipole (accordingly to exclude from the program all calculations, connected to a wedge).

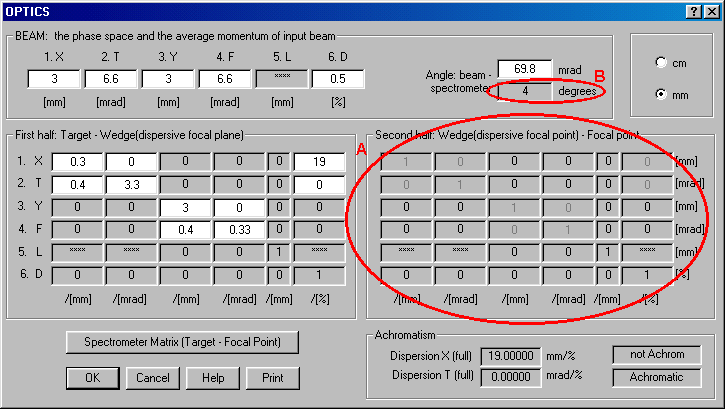

Fig.5. Dialogue Optics in the mass-separator mode

Switching off the second part of the spectrometer reduces the optical matrix of the second part of the spectrometer to identity matrix (see A on Fig.5), and the acceptances of the second part of the spectrometer are disregarded (see Fig.6). After lockout of the second part of the spectrometer, the user is notified, that the configuration of the program was automatically changed. At repeated insert of the second part of the spectrometer there is again a message, that the user should tune the second part of the spectrometer by hand or load it from the configuration file.

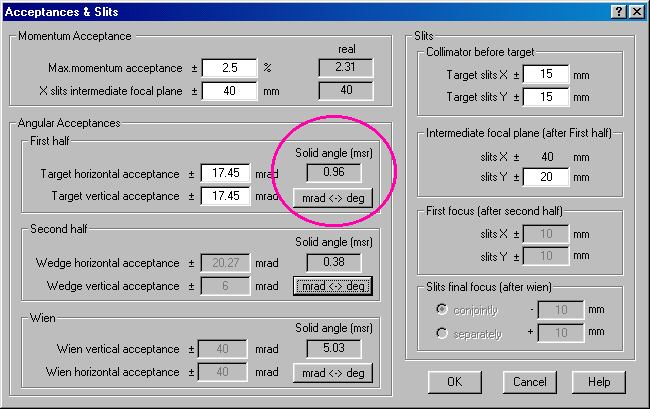

Fig.6. Dialogue Acceptances and Slits in the mass-separator mode

3.2 New dE-X plot in the dispersive focal plane

The dE-X plot in the dispersive focal plane is the most important one for experiments on mass separators.For this reason it was created in the new version of the program by adding it to already the existing dE-X plot in the final focal plane. In the program already there was an one-dimensional plot of horizontal distribution of fragments (X-Brho selection plot in IDFP). To obtain the plot of total kinetic energy versus X it is necessary first to enter major enough thickness of the detector for a stopping in him of products of reaction.

In Fig.7 the dependence of energy losses of the isotopes of nitrogen in the third detector on the horizontal position in the focal plane of the magnetic spectrograph MSP-144 [Bel98] in the reaction ¹²C(190MeV) + B is shown. In this case the focal detector was an the ionization chamber [Bel89] with 4 segmented anodes. The pressure of the gas is selected so that the studied ions are stopped in the third detector. In the figure it is well visible, that at small energies the ions of nitrogen do not reach the 3-rd detector and are stopped in the second detector, which corresponds to the left-hand part of the spectrum. At higher energy, that corresponds to the right part of the diagram, the ions fly further than the third detector. Two vertical lines in the figure denote the size of the detector (-95 ¸ 95 mm).

The configuration file of the magnetic spectrograph MSP-144 has been incorporated in the list of LISE s setups.

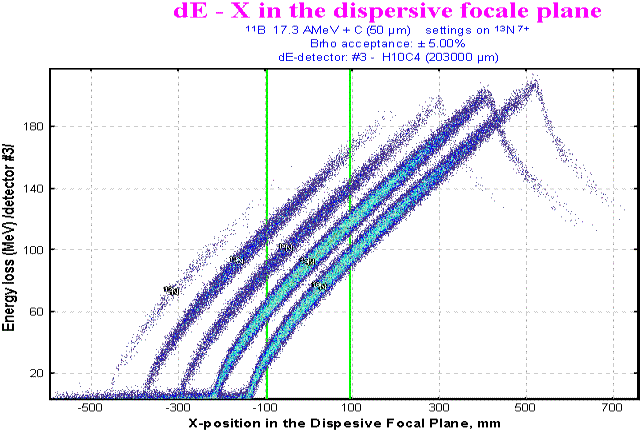

Fig.7. The LISE code simulation: Two-dimensional plot of E_R vs. X for the ¹²C(¹¹B,¹³N)¹⁰Be reaction at 190 MeV incident energy. For details see the text.

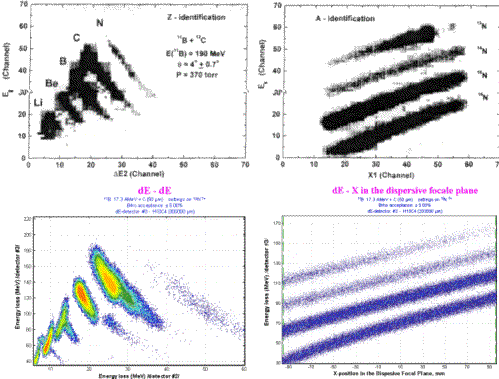

Fig.8. Comparison of experimental (upper) and calculated (lower) distributions. See the text for details

In Fig.8 the comparison of experimental distributions [Bel98] with calculated ones by the program LISE for the reaction ¹²C(190MeV) +B is presented. The upper plots represent experimental spectra D E2 vs. E_R and E_R vs. X, where E_R is the rest energy, given by the third detector. On the lower panels the calculations accordingly represented. Inferior two-dimensional plot of X vs. E_R there is a fragment of Fig.7 that corresponds to a working band of the focal detector.

3.3 New opportunity to select the velocity of reaction products

The new version of the program to be used for a mass separator gives the opportunity to select the velocity of the reaction products in the two body relativistic kinematics (Fig.9-A). In the given evaluations the angle (Fig.9-B) of the mass separator with respect to the beam direction is included. This was made so as to be able to simulate results not only for fragmentation reactions, as was included earlier in the program, but also for transfer reactions. It is a first step in the program for this type of reaction, but as shown in chapter 3.5. it is still necessary to work in this direction.

In Fig.10 the distributions of velocities of reaction products from mass of an ion and from particle energy represented, where the calculations with evaluation, new to the program, of velocity of reaction products two-body kinematics already represented.

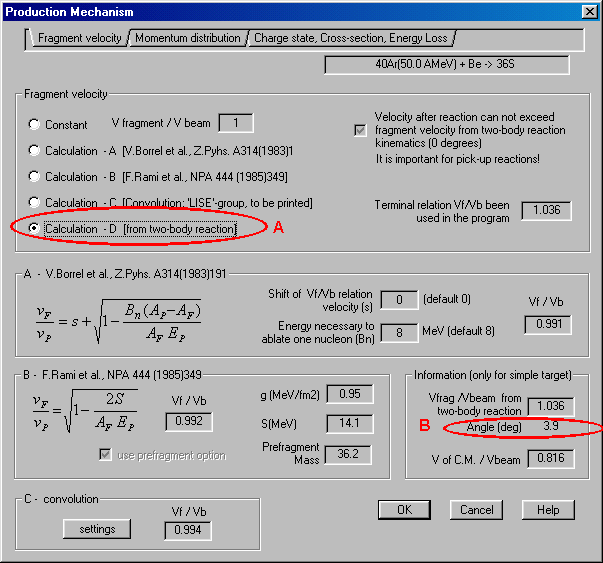

Fig.9. Dialogue Production mechanism Fragment velocity

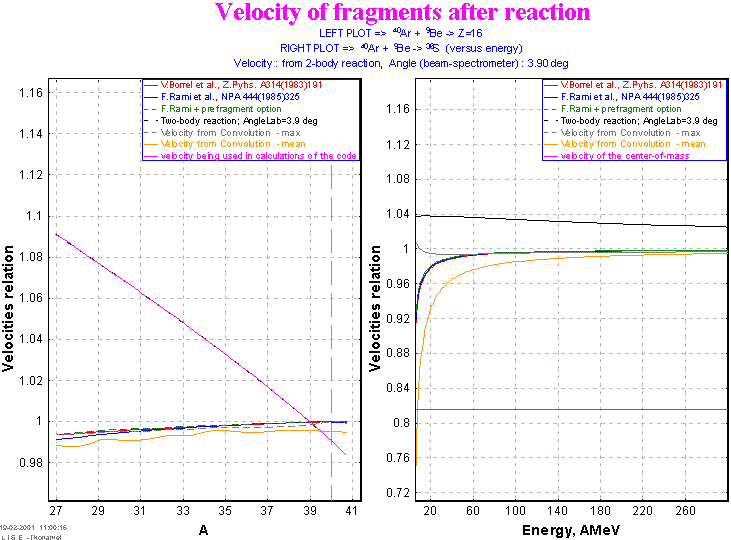

Fig.10. The distributions of velocities of reaction products from mass of an ion and from particle energy

3.4. New image of the dialogue Beam

In this version, the user can set the beam intensity not only in electrical nanoamperes (enA), kilowatts, and particles per second (pps), but also in the well-known format of particle nanoamperes (pnA) (see Fig.11-B). Also user at input of energy of a beam automatically can supervise its total kinetic energy (Fig.11-A).

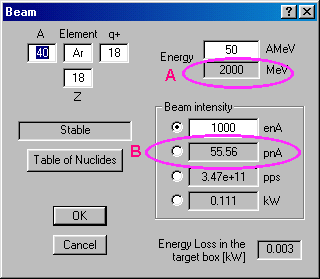

Fig.11. Dialogue Beam

3.5. It is still necessary to work on:

1. Parameterization of cross-sections of transfer reactions on the basis of Q_gg-systematics;

2. Angular distributions of transfer reactions;

3. Width of momentum distributions of transfer reactions;

4. Energy dependence of reaction products on angle for first four choices of velocity;

5. Addition of some more invariance utilities for operation with MSP-144;

6. Parameterization of density of butane from pressure.

4. The automated search for two-dimensional peaks in spectra and the determination of their characteristics- version 4.11

Definition of the fragment outputs is a rather labour-consuming process: it is necessary to handle tens of matrixes, each carrying the information on several tens of ions. For example, in the experiment on a beam ¹¹²Sn [Lew94] the nuclei with mass number from 8 up to 53 were identified. For each value of the magnetic rigidity there were four matrixes for various charge states of the reaction products, and in everyone more than five hundred ions. After measuring all data are imported to the computer for further analysis. The volume of operation can roughly be estimated:

500 ions ´ 4 matrixes for a charge state ´ 10 values of the magnetic rigidity = 20 000 values!

It is necessary also to mark the high probability of subjective errors of the experimenter, connected, both with the analysis of two-dimensional peaks, and with the transport of the information to the computer. In this connection, for the automized searching of two-dimensional peaks and definition of statistical parameters the Bi program was created.

There are three versions of the program:

	Operating system	the programming language	the spectrum format
1	VMS 5.1 and is higher the	Fortran	GANIL Acquisition
2 (Fig.12) ftp://dnr80.jinr.ru/bi	MS DOS 3.3 and higher	C	the program Athene /format SURFER /
3 (Fig.13) (in-built in LISE code)	Windows 95,98,NT, 2000	C++	SURFER GANIL Acquisition after FTP ASCII files

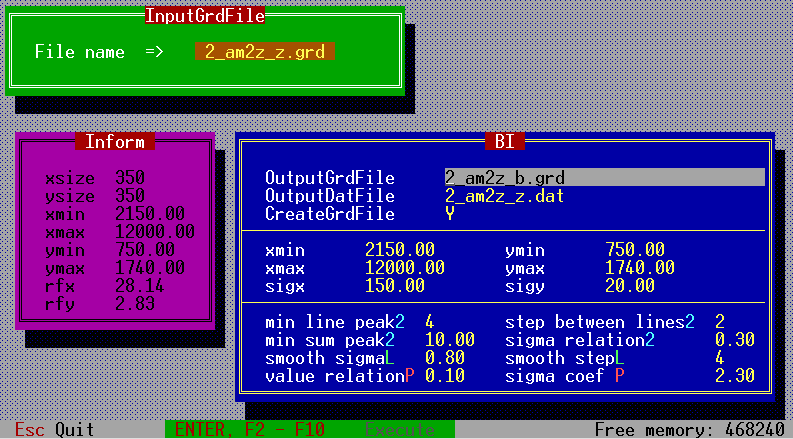

Fig.12. The interface window of the Bi program (version under MS DOS), intended for the automized searching of two-dimensional peaks and definition of statistical parameters.

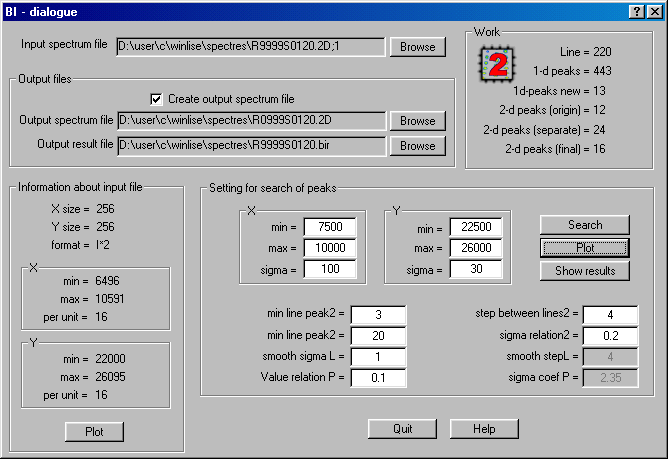

Fig.13. The dialogue Bi in LISE code.

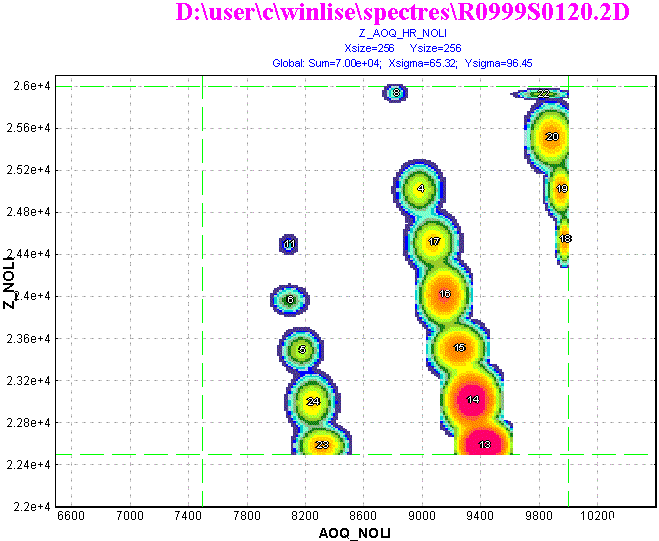

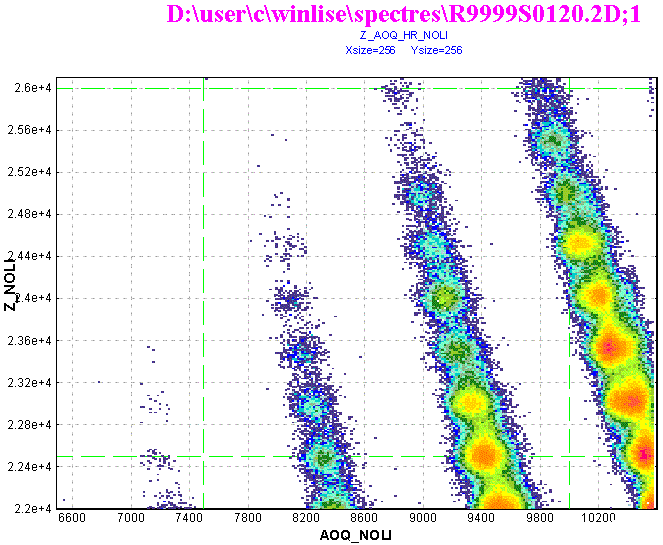

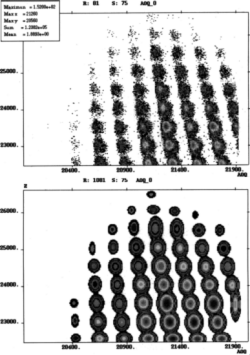

Fig.14. The experimental spectrum is shown in the left figure and in the right figure accordingly the spectrum obtained after searching and definition of parameters of two-dimensional peaks in the selected rectangle by the "Bi" subroutine in LISE code.

The examples of operation of the program are presented in Fig.12,13. All versions produce the results of the analysis (see Fig.14 and Fig.17) in a pictorial view (new spectrum of the same format) and as a table (Fig.15) with all statistical parameters of all the identified peaks. The program can be modified to other spectra formats easily without changing of its basis of a spectrum by adding the relevant subprograms of reading and recording spectra. In order to be able to switch on the new format of a spectrum it is necessary to send a request to the authors of the program with a description of structure of the spectra (desirablya code source), and also as an example an experimental spectrum in this format. It is also planned to make code conversion of spectra of one format in to another.

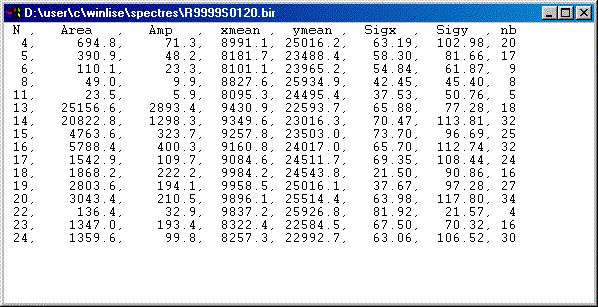

Fig.15. Window with a text file with the results of searching of two-dimensional peaks in the spectrum represented in Fig.14 by the BI subroutine in the LISE program.

The algorithm of operation of the program of the automized searching of two-dimensional peaks and definitions of their statistical parameters is presented in a Fig.16. The input of initial model of searching consists in the following:

Determination of a window of searching x_min , x_max , y_min , y_max (parameters of a window of an explored spectrum) by default take;
The important parameters individual for each spectrum σ_x and σ_y are set, which values should be close to average dispersions of explored peaks on horizontal and vertical axes accordingly;
Depending on quality of a spectrum (background, diffuseness , superimposition of peaks) the interior parameters must be modified, which exposition is given below.

The smoothing is carried out with the help of coefficients obtained from a normal distribution. In the beginning for everyone from a point there is a fashion:

, Where step is the number of adjacent points considered in smoothing (according to the menu, represented in Fig.12,13 the given parameter is called smooth stepL and parameter, defining width of a normal distribution (according to the menu matters by default 4), smooth - smooth sigmaL , is by default equal 1). After normalization to maintain the total events in the given horizontal line, we gain rounded value.

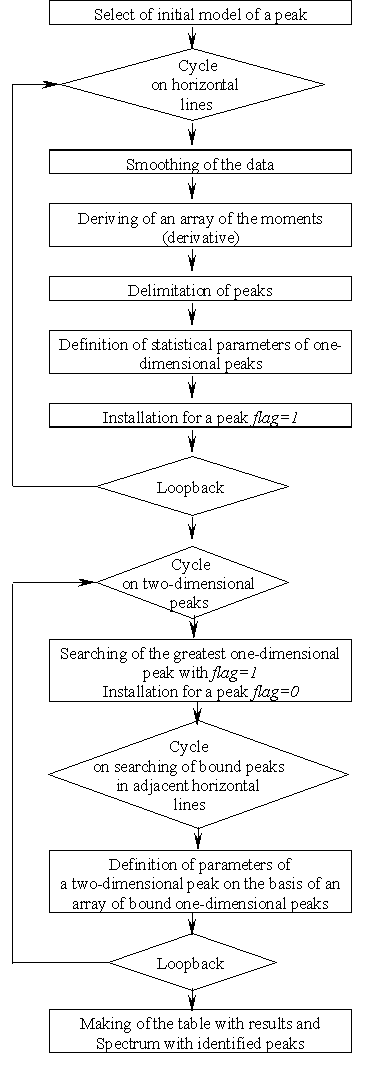

Fig.16. Algorithm of operation of the program of the automized searching of two-dimensional peaks and definitions of their statistical parameters.

Fig.17. In the upper figure the experimental spectrum of yields with Z=45-53 in the reaction ¹¹²Sn (58AMeV)+Ni [Lew94] for completely stripped nuclei (Q=Z) at magnetic rigidity Br=1.98835 Tm depending on the mass number Z and the quantity A/Q. In the low panel the spectrum obtained after searching and definition of the parameters of two-dimensional peaks by the "Bi" program (VMS-version) is given.

The most important moment of the program is searching an one-dimensional peak and definition of its boundaries, under condition of, that this searching was prompt enough and effective. Originally searching was realized with the help of an evaluation derivative in each point. Radiating from extremes:

boundaries of peaks (minimums) and sites of maximums of peaks were delimited. To definition by derivative in a point x_c was applied a fit by a line in an interval x_c-step^#¸ x_c+step^#. The value step^# is equal to product sigx and sigma_coef_P (see menu in Fig.12,13) and has physical sense of full width on half-height of a peak. Parameter of a declination of the given line was used as derivative. However the fit occupies a lot of time, therefore the simple and effective method was offered on the basis of evaluation of the moment of the first order in a point xc:

where l is equal to the whole value of the attitude step# to a step of an axis Dx= x_i-x_i-1 . The example of results of smoothing of experimental data and definition of their " moments" for an one-dimensional spectrum represented in Fig.18. From a figure clearly it is visible, that the crosses of function of the moments with a zero axis and change of signs + on - correspond to maximums of peaks of experimental data, and with change of signs - on + according to boundaries of peaks.

Fig.18. Results of smoothing of experimental data and definition of their "moments" for an one-dimensional spectrum.

The stayed interior parameters of the program (according to the menu in a Fig. 1) have the following functions:

value relationP - is multiplied on amplitude of a peak (by default 0.1). The obtained quantity is used for definition of a peak boundary, if up to the following of a peak or up to boundary of a spectrum there is a point, the value in which is less than the given quantity. The obtained value is to avoid background events not having attitude to the peak and capable to affect its characteristics;
min line peak2 - minimum quantity of one-dimensional horizontal peaks in two-dimensional peak (by default 4). If the quantity of horizontal peaks is less than the given quantity, the peak is eliminated from the list;
min sum peak2 - underload area of a two-dimensional peak (by default 10). If the area of a peak is less than the given quantity, the peak is eliminated from the list;
step between lines2 - the maximum quantity of horizontal lines, in which happens searching in a determinate direction (upwards or downwards) one-dimensional peaks for a two-dimensional peak (by default 2). If in these lines the one-dimensional peak obeying the given two-dimensional peak was retrieved the searching is prolonged in the same direction, using again same maximum quantity of horizontal lines.

5. Prefragment search - version 4.10

For the first time in the program concept the prefragment was input for argument of a discrepancy of experimental values of fragments velocity and formula, calculated with the help formula [Ram85], where it is supposed, that kinetic energy leaves on a difference of surface energies between a fragment at the moment of interaction with a target and its ground state in the guess of the spherical shape. However calculated values were underestimated, that is why it was supposed, that is necessary to calculate velocity of a prefragment, guessing then its equal velocity of a fragment.

In further concept of a prefragment also was entered for calculations of momentum distribution width on [Fri83]. The user in all above-stated cases had the right of a select: to use concept of a prefragment whether or not.

However by more essential usage of calculations of a prefragment was by introduction in the program of a universal parameterization of fragment momentum distribution. Moreover concept of a prefragment underlies this parameterization. In this connection in the new version the dialogue Prefragment has appeared Fig.19, where the user can set some methods of searching of a prefragment and see the results of calculations of a prefragment.

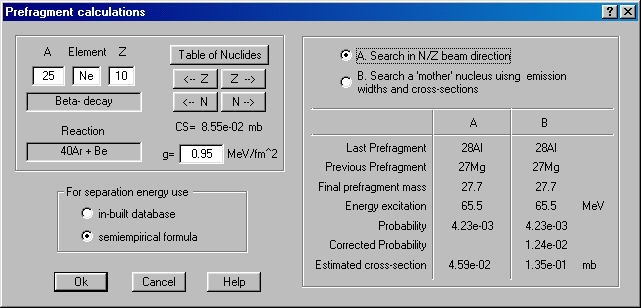

Fig.19. Dialogue Prefragment calculations .

The basic algorithm consists in the following:

The underload energy necessary for decay of a fragment pays off, accepting, that temperature of the heels will be equal 0. In the program starts by analogy to operation [Gai91] three possible channels: evaporation of proton, neutron or alpha-particle. For a case of charged particles the Coulomb barrier takes in attention. The given underload energy takes to spot an energy window of excitation in which there was a finite product and can not undergo evaporation any more. After that the middle (E_R) of an energy window is a start point for calculations.
Depending on a selected method of searching (about it will be said later) the following nucleus in a chain is determined.
The energy dE relieved from this nucleus to daughter nucleus that is toted with the previous energy E_R. The difference of a surface energy E_S guessing pays off, what is it there was an initial prefragment. If the difference of a surface energy appears more than E_R+dE, then the searching of a parent nucleus with the subsequent cycle up to that pore is iterated again while the total of energies bound with a chain of decay will not exceed a difference of a surface energy.
Final mass of a prefragment used in the program, is approximated from masses of a final prefragment and its daughter nucleus in view of energies.

There are two methods for searching a parent nucleus:

It is supposed, that the following nucleus is proportional to the relation of neutrons and protons (N/Z) of a beam (this method takes by default) (see Fig.20-A);
By a principle represented in operation [Gai91] but in the other direction the probabilities of transitions are determined (see Fig.20-B). After that they are multiplied on cross-section of deriving of the given nucleus from the parameterization EPAX. The nucleus is picked preceding what this quantity is more. The given method not up to the end is still worked and has two essential deficiencies:

cross-sections take from an experimental parameterization (for this purpose better to enter into the program model abrasion-ablation);
such variants are probable, that the failure of two neutrons on an example is less favorable, than one proton but the program will go step by step at first through one neutron, and then and following. In other words it is necessary to switch on in the program also matching with combinations 2n and 2p.

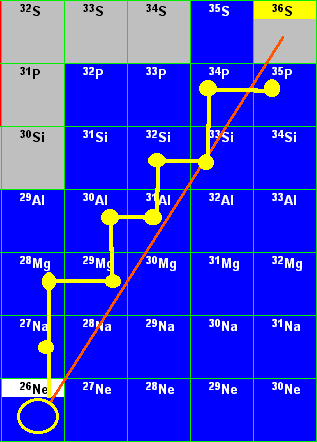

A.	B. maximum Ã_n(²⁷Ne) CS(²⁷Ne), Ã_p(²⁷Na) CS(²⁷Na), Ãa(³⁰Mg) CS(³⁰Mg) Fig.20. Two possible methods to search of a prefragment.

5.1. Attempt to extrapolate cross-sections of exotic nuclei

The probability of formation of a final fragment from the retrieved fragment automatically pays off by searching a prefragment. Using this quantity and the cross-section of a prefragment production from the parameterization EPAX, it is possible to estimate a production cross-section of a final fragment. It is especially interesting for nuclei far from the stability line. As it was already mentioned, the basic disadvantage is that the experimental cross-sections are used.

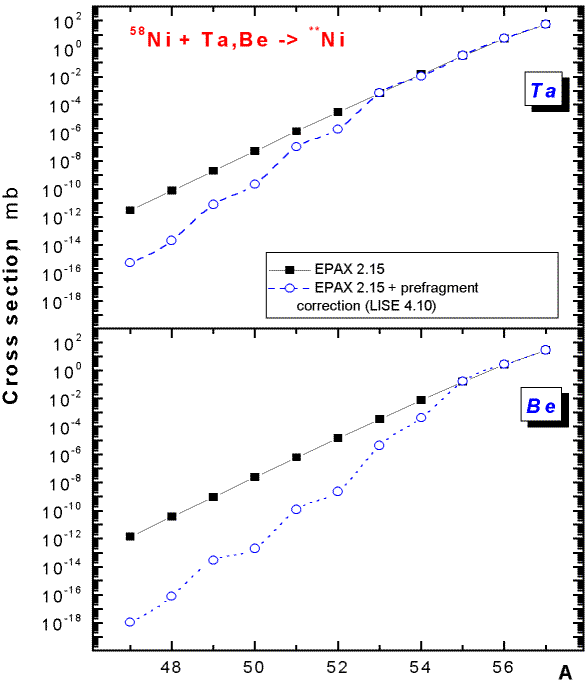

Fig.21. Cross-sections for production of Ni-isotopes with a ⁵⁸Ni beam on a Ta-target (upper picture) and a Be-target (bottom picture). Black solid rectangles correspond to cross-sections calculated by EPAX 2.15, open blue circles the previous cross-sections with prefragment corrections.

In various experiments devoted to the study of the properties of exotic nuclei, it was marked, that the greatest output of reaction products is reached on heavy targets, though the programs, including the given program, predict on the basis of the parameterization EPAX a greater output in the case of light targets. First of all it is possible to explain this by the fact that in the given parameterization the relation between cross-sections for various nuclei is always constant, that does not correspond to the reality. So in experiments on the synthesis of ⁴⁸Ni with a beam ⁵⁸Ni [Bla00] the advantage of a nickel target compared to a carbon target was supervised, in experiments on study of the stability of ²⁸O [Tar97] the greatest output for nuclei in the region N=20 is shown. So in experiments on the synthesis of ¹⁰⁰Sn [Lew94] the greater output in the case of a Ni-target was explained by the experimenters by the additional contribution from transfer reactions. Also it was marked, that experimental cross-sections for super exotic nuclei are much below the calculated ones.

However, it is possible to explain this by the greater excitation energy of prefragments in the case of light targets, due to the fact that the prefragment has longer chain of daughter nuclei, which leads on to a more stable final nucleus. On the basis of the new model of calculations of a prefragment the attempt was made to estimate cross-sections for the case of proton-rich isotopes of nickel produced with a beam of ⁵⁸Ni (see Fig.21). As it was already mentioned, the basic disadvantage is that the cross-sections used for these estimations also are experimental. For the given calculations the searching of a fragment was done by the N/Z method, and the characteristics of nuclei were calculated using the formula, instead of being taken from the database (see Fig.19). From Fig.21 it is visible, that in order to produce the isotope ⁴⁹Ni the ratio between the original parameterization EPAX and calculations with prefragment corrections for a Ta-target constitutes 260, whereas for Be-target this value already is more than 4000, which then explains the advantage of heavier targets.

5.2. Calculation of isotope characteristics with the semi empirical formula.

In this version of the program the user has got an opportunity to add the data on new isotopes. The insertion of a new record is possible if the user inserts in the dialogue an isotope, which does not exist in the database. Pressing on the key "Add record" (Fig.22) the user creates a new record, and the database automatically remakes indexation. Also the user can get calculated values for the given isotope (button Calculate ) on the basis of the semi empirical formula (Fig.23). For those evaluations, where usage of the characteristics from the database is required, but the data on this isotope is missed in the database, the program calculates them on the basis of the semi empirical formula.

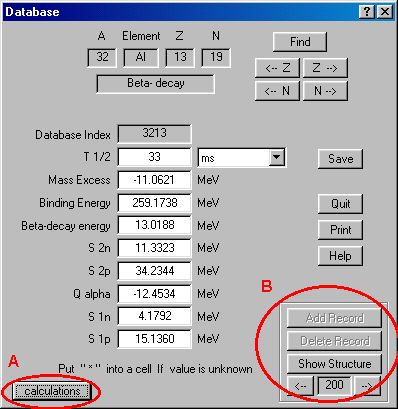

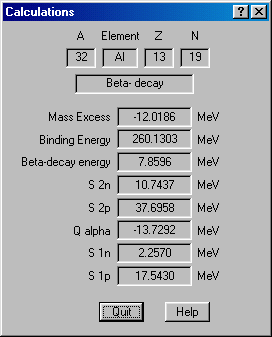

Fig.22. Dialogue Database .	Fig.23. New Dialogue Calculations of isotope characteristics .

References

[Bel89] A.V.Belozyorov et al., Report P15-89-2255, JINR, Dubna, 1989.

[Bel98] A.V.Belozyorov et al., NIM A 411 (1998) 343-350.

[Lew94] M.Lewitowicz et al., Phys. Lett. B 332 (1994) 20-24.

[Ram85] F.Rami et al., Nucl.Phys. A444 (1985) 325.

[Fri83] W.A.Friedman, Phys.Rev. C27(1983) 569.

[Gai91] J.-J.Gaimard, K.-H.Schmidt, Nucl.Phys. A531 (1991) 709-745.

[Bla00] B.Blank et al, Phys.Rev.Lett. 84 (2000) 1116-1119.

[Tar97] J.-J.Gaimard, K.-H.Schmidt, Phys.Lett. B409 (1997) 64-70.
